Wednesday, April 3, 2013

Monitoring OpenJPA's Caches on the WebSphere Liberty Profile

OpenJPA provides several types of caches that can be used to improve the performance of many applications. Several of OpenJPA's caches collect statistics such as number of entries, hit count, and object type. These attributes can be helpful for monitoring the effectiveness of the cache.  Analysis of these statistics can help you to make decisions about what to cache, how many objects to cache, or even whether to enable caching at all.  An effective caching scheme can produce significant performance benefits, while an ineffective scheme may be a drag on performance and almost certainly increase the memory requirements of the application.  A little tuning can normally go a long way.

Initally, accessing OpenJPA's cache statistics required adding custom Java code to your application.  You were required to call OpenJPA APIs to navigate through the configuration, get access to the caches, and then access their statistics.  As of OPENJPA-1739 (OpenJPA 2.1), these caches are now JMX instrumented.  This means that a application such as JConsole can be be used to monitor cache information out-of-band.  This type of monitoring can be accomplished without changing the application code and with only minor changes to the configuration.  For example, by adding set of properties to your persistence.xml, you can enable instrumentation of the data cache, query result cache, and SQL caches:

<property name="openjpa.Instrumentation
<property name="openjpa.DataCache"
<property name="openjpa.QueryCache"
<property name="openjpa.jdbc.QuerySQLCache"

Using JConsole (provided with some 1.6 and later JDKs), you can attach to your Java program and use the MBeans provided by OpenJPA to view statistics for its caches.  You can also invoke methods on the MBeans to get individual statistics about certain queries or cached object types.  In addition to direct monitoring of the MBeans, the OpenJPA project provides a data cache plugin for JConsole.  The data cache plugin provides a nice interface for monitoring the L2 data cache.

As long as the environment supports JMX, applications running Java SE and Java EE environments can be monitored. The OpenJPA documentation explains how to enable the JMX server in a Java SE environment. This blog contains some information for using JConsole with WebSphere Application Server full profile.

JPA applications deployed on the WebSphere Application Server Liberty Profile version 8.5 and the Liberty V.8.5.Next Beta can also be monitored. Configuration is a piece of cake. You simply need to add the configuration above to your persistence.xml and enable the localConnector-1.0 feature in your Liberty Profile server.xml:

<server description="Liberty Server">
    ... other configuration ...

Start the Liberty application server, and begin using your application. After performing a few operations that use JPA, start up JConsole with the OpenJPA Data Cache plugin and connect to the server. You can find the Liberty Server in the Local process list by searching for for ws-launch.jar followed by the name of your server.

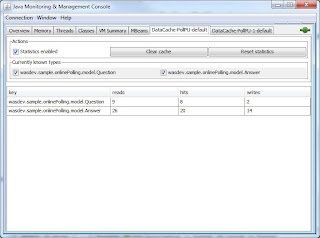

JConsole will connect to the local process and the data cache plugin will discover the PUs available on the server. A tab will be created for each PU it discovers. This screen shows the DataCache statistics for the PollPU persistence unit.

You can also select the MBeans tab and browse through cache statistics of all the caches for the various persistence units in the server. The MBeans also allow you to reset cache statistics and query statistics for individual objects or queries on the fly.


Friday, March 15, 2013

EJB Lite feature supports JPA in Liberty Beta

The WebSphere V8.5.Next Liberty Profile Alpha gave us a first look at a new EJB Lite (ejblite-3.1) feature for the WebSphere Liberty profile.  If you use EJB session beans to drive your persistence layer you may have been disappointed since the EJB Lite capability in the Alpha didn't include support for JEE-style use of JPA with EJBs.  Attempts at injecting or lookup of JPA entity managers and/or factories within an EJB resulted in an exception.  The use of JPA with Java SE style bootstrapping (Persistence.createEntityManagerFactory()) may have worked if you happened to be using resource local transactions and connection properties (rather than server defined data sources).  This was not an ideal or typical configuration in the application server environment.

But, enough about the Alpha!  I'm happy to report that the recent WebSphere V8.5.Next Liberty Profile Beta includes a major bump in EJB Lite functionality, including integration with JPA.  This integration includes all you might expect, container managed persistence, enlistment in JTA transactions, and support for extended persistence contexts.  The WebSphere Development Tools for Eclipse Beta 9 on top of Eclipse WTP makes it a piece of cake to create new or modify existing EJB and JPA applications.  To enable EJB and JPA in the Liberty Beta just add this feature set to your server.xml (include any other features you may require):

Check it out!


Wednesday, May 9, 2012

OpenBooks sample works with new WebSphere Liberty Profile!

There is an exciting new feature in WebSphere Application Server v8.5 called the Liberty Profile.  The Liberty Profile provides a new, sleek, highly-efficient application server environment both for development and production use.  You can find out more details about Liberty on WASdev Home.

For those of you that joined me at Impact 2012 last week, I mentioned in my JPA presentation that I had attempted to deploy OpenBooks to a Liberty Profile server on the plane to Vegas.  With just a couple of modifications to my configuration, I was able to get OpenBooks up and running in no time.  But, I needed to update the OpenBooks instructions before going "public" with the information.

I have now completed the updates to the OpenBooks sample and associated instructions.  In addition to making the necessary configuration updates to run the OpenBooks application on Liberty, I also updated a few other build, install, and execution issues.  You can now build and execute the OpenBooks sample in JSE mode and two JEE environments -- WebSphere Application Server, and the new Liberty Profile.  Enjoy!

Monday, March 28, 2011

Lightweight JPA testing in a JEE environment using the WebSphere Embeddable EJB Container

Recognizing the importance of accelerated development and simplified testing, Enterprise JavaBeans took a page out of the JPA book by including JSE-friendly embeddable container within the EJB 3.1 specification. While the embeddable container doesn't support all the bells and whistles of a full blown container, it gives you plenty of features that can drastically speed up development and more importantly, provide a test environment that more closely resembles a JEE environment - in both configuration and behavior.

The EJB 3.1 specification outlines these features for the embeddable container:
  • Synchronous calling of local stateless, stateful, and singleton beans (singletons are new in EJB 3.1)
  • Declarative and programmatic security
  • Interceptors
  • Use of annotations or XML deployment descriptors
  • Support for JPA 2.0
In addition to these features, the embeddable EJB container provided with WebSphere Application Server V8 provides the ability to easily configure JDBC data sources. This is especially important when using JPA in container managed mode. WebSphere's embeddable container even supports the use of JTA component data sources within your persistence.xml. This allows you to use the same persistence.xml with the embeddable container as you use in your enterprise application.

With the exception of an optional (but recommended) IDE such as Eclipse or RAD 8.0.3, WebSphere Application Server V8 contains everything you need to get started - the Java SDK (depending on platform), the embeddable container, JPA client package, and the Derby database. When you install the beta be sure to install Stand-alone thin clients, resource adapters and embeddable containers.

For the purposes of an example, let's say we have a simple EJB module that is used to manage personal contacts. The ContactModule contains a simple annotated session bean named
ContactBean which is primarly a transactional facade over JPA operations. The operations provided by the EJB allow you to find a contact by name, save a contact, and clear all contacts. The JPA operations operate on a persistent entity, Contact. The ContactBean is a session bean that implements a local interface ContactLocal. While EJB 3.1 will now provide access to an bean without a Local interface, using interfaces is still a good practice. Interfaces provide a layer of abstraction from the base bean. They allow the bean to implement multiple specialized interfaces or allow the client to call a different EJB which implements the interface without modifying Java code. Here are our EJB and JPA classes and persistence.xml:

package ejbs;

import static javax.ejb.TransactionAttributeType.REQUIRED;
import static javax.ejb.TransactionAttributeType.SUPPORTS;

import java.util.List;

import javax.annotation.Resource;
import javax.annotation.Resources;
import javax.ejb.Stateless;
import javax.ejb.TransactionAttribute;
import javax.persistence.EntityManager;
import javax.persistence.PersistenceContext;
import javax.persistence.Query;
import javax.persistence.TypedQuery;
import javax.sql.DataSource;

import entities.Contact;

// Data source references for JPA
@Resource(name="jdbc/ContactDS", type=DataSource.class),
@Resource(name="jdbc/ContactNoTxDS", type=DataSource.class)
public class ContactBean implements ContactLocal {

private EntityManager em;

public List<Contact> findContactsByLastName(String lastName) {
TypedQuery<Contact> q = em.createNamedQuery("ByLastName", Contact.class);
q.setParameter("lastName", lastName);
return q.getResultList();

public Contact saveContact(Contact c) {
return em.merge(c);

public void clearContacts() {
Query q = em.createNamedQuery("DeleteAll");

package ejbs;

import java.util.List;
import javax.ejb.Local;
import entities.Contact;

public interface ContactLocal {
public List<Contact> findContactsByLastName(String lastName);
public Contact saveContact(Contact c);
public void clearContacts();

package entities;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.NamedQueries;
import javax.persistence.NamedQuery;

@NamedQueries( {
query="SELECT c FROM Contact c WHERE c.lastName = :lastName"),
@NamedQuery(name="DeleteAll", query="DELETE FROM Contact c")
public class Contact {

private Long id;

private String firstName;
private String lastName;
private String phoneNumber;
private String emailAddress;

public void setId(Long id) { = id;

public Long getId() {
return id;

public void setFirstName(String firstName) {
this.firstName = firstName;

public String getFirstName() {
return firstName;

public void setLastName(String lastName) {
this.lastName = lastName;

public String getLastName() {
return lastName;

public void setPhoneNumber(String phoneNumber) {
this.phoneNumber = phoneNumber;

public String getPhoneNumber() {
return phoneNumber;

public void setEmailAddress(String emailAddress) {
this.emailAddress = emailAddress;

public String getEmailAddress() {
return emailAddress;

 <?xml version="1.0"?>
<persistence xmlns=""
xmlns:xsi="" version="2.0"
<persistence-unit name="ContactPU" transaction-type="JTA">
<!-- Create the database tables on startup -->
<property name="openjpa.jdbc.SynchronizeMappings" value="buildSchema"/>

The simple EJB + JPA module looks like this when loaded as an Eclipse project:

Since ContactModule uses only Java EE APIs, it only requires WAS_HOME\dev\JavaEE\j2ee.jar to compile. If you use WebSphere, OpenJPA, or other extensions you'll need to include additional jars in your build path. Remember, this is only to compile the EJB + JPA module. We'll need different jars to actually run the module in the Embeddable EJB Container.

Now that the module is defined, we need to create an EJB jar file. As of EJB 3.0, a deployment descriptor (ejb-jar.xml) is not required. You can either use the "jar" command to create the jar or use the Eclipse Export... -> Java -> JAR file wizard. Export the jar to a location such as C:\ContactModule.jar. The EJB jar file should contain:

  • entities/Contact.class
  • ejbs/ContactBean.class
  • ejbs/ContactLocal.class
  • META-INF/persistence.xml
We now have an EJB module. Traditionally, to test this module you'd write a web client, deploy it in the app server, and drive some http operations against it. Another option is to create a JEE client container app and then drive the EJB using launchClient. Or you may have used RAD's Universal Test Client to execute EJB operations. All of these options work, but they can be difficult to automate and some of them may require code modifications in order to work properly.

Let's take a look at how the Embeddable EJB Container can be used to simplify this testing using the popular JUnit 4 test framework. Again, I used an Eclipse project, but provided that you have the necessary JUnit 4 libraries, you can also run the same tests from the command line. To test the basic functions of our ContactBean session bean, we'll create a simple JUnit 4 annotated test class, TestContactBean.

package test;

import java.util.List;

import javax.ejb.embeddable.EJBContainer;

import org.junit.Assert;
import org.junit.Test;

import ejbs.ContactLocal;
import entities.Contact;

public class TestContactBean {

public void testContactBean() {

// Create test data
Contact c1 = new Contact();

Contact c2 = new Contact();

// Create the embeddable container
EJBContainer ec = EJBContainer.createEJBContainer();

try {
// Use the embeddable container context to look up a bean
ContactLocal contactBean = (ContactLocal) ec.getContext().lookup(

// Clear existing contacts

// Save new contacts

// Query contacts and verify results
List contacts = contactBean.findContactsByLastName("Smith");
Assert.assertEquals(2, contacts.size());
for (Contact c : contacts) {
} catch (Throwable t) {"Caught unexpected exception: " + t.getMessage());
} finally {

If you've used JPA in JSE-mode, the pattern looks pretty familiar, right? We use a static EJBContainer.createEJBContainer() method to create the embeddable container and then use a lookup to get an instance of the bean. Knowing what JNDI name to use can be a little tricky, but the new java:global namespace simplifies that as well. In general, you can use java:global/module-name/bean-name[/!interface] to look up the bean. After you have a reference to the bean, you can call its EJB methods. Piece of cake. Well there is a little more to do. In order to get the code to compile and run you need to include ContactModule.jar, WAS_HOME\runtimes\, WAS_HOME\runtimes\, and the jUnit jars in your classpath.

If we were simply testing EJBs we'd be all set. JPA has a few more requirements we need to take care of. First, since we'll be using Derby as our database, we need to add the Derby library to our classpath. It can be found at WAS_HOME\derby\lib\derby.jar. Second, in an EE environment, JPA uses data sources to connect to a relational database. JPA typically requires both a transactional and non-transactional data source. WebSphere's embeddable container allows us to very easily configure data sources one of two ways. The most flexible of the two approaches is to configure them within a properties file. If a file named is found on the classpath the properties in this file will automatically get loaded by the embeddable container . The WebSphere Embeddable EJB Container also allows you to pass properties in via Map on the createEJBContainer method. As a third option you can specify a system property to inform the embeddable container where its properties file resides. More information on the properties supported by the embeddable container can be found in the Information Center article Embeddable EJB container configuration properties. You'll find that the embeddable container is extremely configurable. You can even configure settings such as cache size, security options, and logging.
# JPA Transactional data source definition

# JPA non-Transactional data source definition

# Definitions for global to component namespace bindings - required for @Resource defs

Another approach is to define the data source using one or more @DataSourceDefinition(s) annotation(s) on the EJB. For example:

public class ContactBean implements ContactLocal {

As you can see, using @DataSourceDefinition is a very simple way to define data sources. There is no properties file or @Resource references to manage. The data sources automatically get registered into the java:comp/env namespace (take a look jta-data-source and non-jta-data-source definitions in the persistence.xml - as a best practice, component data sources are used). However, simplicity comes at the cost of flexibility. A change in the data source definition requires recompiling the application.

There's one more JPA-specific item we need to take care of before running the test. In the full application server, the container takes care of JPA entity enhancement. This does not occur in the embeddable container. Fortunately, you can either enhance the entities at build time or the JPA agent-based enhancer can be used to perform the enhancement at runtime. Enabling the enhancer is as simple as specifying the JVM option -javaagent:C:\/"Program Files/"\IBM\WebSphere\AppServer\runtimes\ on the java or Eclipse jUnit invocation. If all goes well, you should see a result similar to this...

More information about the Embeddable EJB Container is available in the WebSphere Application Server V8 Information Center. Happy testing!


Tuesday, September 14, 2010

Type-safe JPQL query results with JPA 2.0

If you use the Eclipse IDE or Rational Application Developer (RAD) for your Java development, you probably make an effort to keep an eye out for warnings flagged in your code and spend some amount of time cleaning them up. That is why they are there, right? To help make sure your code is top notch. Warnings are even more prevalent if you have a large amount of pre-Java 5.0 code and have moved to Java 5 or Java 6. If you had a fairly warning-free code base and moved to Java 5 or newer you've probably encountered a barrage of new warnings in your workspace. The introduction of Java generics in Java 5.0 is one of the major culprits for all these new warnings. The use of collection classes (Collection, Set, List, etc.) that you happily used in your code are now all warning flagged as needing to be parameterized/typed.

If you are a user of JPA, normal usage of some of the JPA APIs (primarly those from JPA 1.0) will add to your warning woes. For example, result list processing of JPQL queries returns an untyped result list that will get flagged as needing type information. Let's say you have some code that creates a JPQL query, executes it, and prints out the result.

Query q = em.createQuery("SELECT e FROM Employee e");
List employees = q.getResultList();
if (employees != null) {
  for (int i = 0; i < employees.size(); i++) {
    Employee emp = (Employee)employees.get(i);
    System.out.println("Employee id=" + emp.getId() + ", name=" + e.getName());

The Eclipse IDE will flag the 2nd line as a warning, telling you that you need to parameterize the List. A quick and dirty way to get rid of the warning is to wildcard the List definition, informing the compiler the list is untyped.

List<?> employees = q.getResultList(); // Good-bye, warning!

This makes a dent in your warning count, but doesn't really buy you much. You are left with potentially unsafe type casts and result processing is still a bit messy. This is where a new feature/interface of JPA 2.0, TypedQuery shines. The TypedQuery interface provides the ability to operate on query results and parameters in a more type-safe manner. The TypedQuery interface is actually geared more toward the new programmatic Criteria API, but provides benefits for JPQL queries as well. Here's an example of how one might write the original code using a TypedQuery.

TypedQuery<Employee> tq = em.createQuery("SELECT e FROM Employee e",     Employee.class);
for (Employee emp : tq.getResultList()) {
  System.out.println("Employee id=" + emp.getId() + ", name=" + e.getName());

The compile time warnings are gone, the casts are gone, and we are able to use the new iterator-based for loop to cleanly process the query result. Looks great, right? Well, there is a caveat. Currently, JPQL-based TypedQuery does not support the use of the JPA 2.0 Tuple to process multi-valued results (for example, returning multiple entity types in a single "row" of the result). However, the JPA 2.0 Criteria API does provide full Tuple support - along with all around true type-safety for query, query result, and query parameters. With any luck the ability to use Tuple with JPQL may make its way in a future version of the JPA specification. But, if your JPQL queries primarily return a single value type, the TypedResult support for JPQL currently provided in JPA 2.0 could go a long way toward writing cleaner code.


Wednesday, July 7, 2010

Using Bean Validation with the OSGi/JPA 2.0 Feature Pack

Do you have applications littered with layers of inconsistent validation logic or are writing a new application that will require data validation? Bean validation (JSR-303 - part of the Java EE6 family of specifications) defines an API for providing runtime validation of data within Java beans. In addition, other EE6 specifications such as JPA 2.0, JSF, and JCA provide tight integration with bean validation, allowing runtime validation to occur seemlessly with your persistence, resource/connectivity, and UI logic.

Using bean validation within the app server requires a JSR-303 spec API library, the bean validation provider library(ies), and any supporting libraries. If you'd like to test drive bean validation with JPA 2.0, the
WebSphere Application Server V7 Feature Pack for OSGi Applications and Java Persistence API 2.0 does not include a bean validation API or provider, but it does include a provision for wiring one in yourself. The wiring is pretty simple and is briefly explained in this IBM Infocenter document Using Bean Validation with JPA. With the information provided in the article, I was able to configure WebSphere Application Server to use Apache's Bean Validation provider using these steps.
  1. Install WebSphere Application Server V7 with the Fixpack required for the feature pack (currently There is a free Developer's Edition if you don't have the V7 test server for RAD 7.5 or an extra license lying about. :-)
  2. Install the WebSphere Application Server V7 Feature Pack for OSGi Applications and Java Persistence API 2.0.
  3. Download the Apache Bean Validation Spec API jar. Save to a location such as:
  4. Download the Apache Bean Validation Core jar. Save to a location such as:
  5. Download the Apache Bean Valdation JSR-303 jar. Save to a location such as:
  6. Download Apache Commons Bean Utils. Extract the distribution and locate commons-beanutils-1.8.3.jar. Copy the jar to a location such as:
  7. Download Apache Commons Lang 2.4. Extract the distribution and locate commons-lang-2.4.jar. Copy the jar to a location such as:
  8. Start the app server.
  9. Open the WebSphere Integrated Solutions Console in your browser (http://<server:port>/admin).
  10. In the navigation pane expand Servers -> Server Types and click on WebSphere application servers.
  11. Select the server profile to configure. Typically server1 in a default single server environment.
  12. Under the Server Infrastructure section, select Process Definition.
  13. Under the Additional Properties section, select Java Virtual Machine.
  14. Under the Additional Properties section of the JVM settings, select Custom properties.
  15. Click New and add a property named and set the value to the location of the bean validation API jar. (ex. /opt/apache/specs/geronimo-validation_1.0_spec-1.1.jar)
  16. Restart the application server.

The application server is now configured to locate and load the bean validation spec API jar. The spec API classes are now available, but the application server (being an EE5 app server) does include a bean validation provider. You need to make a provider available to your application by either bundling it with your application archive (in the proper location within a war or ear) or via a shared library. Include the bean validation core, bean validation jsr-303 component, commons bean utils, and commons lang 2.4 jars within the application or shared library and you'll be off to the races.

That's all there is to configuring the application server. To actually build applications which take advantage of bean validation constraints, you'll need to specify the spec API library in the build path of your tooling. The examples in Apache Bean Validation Primer will help you get started. The example in the primer is targeted for a JSE environment (I'm working on a JEE version -- no ETA), but the JPA entities, constraints, validators, and logic can be easily ported to an EE environment. One additional very important item to note is that your persistence.xml must be updated to version 2.0 in order for bean validation to be enabled by the JPA provider (OpenJPA). Since the 2.0 schema is backward compatible, it is typically a simple one line XML change. The JPA Integration section of the primer contains the rationale for this requirement and an example.


Wednesday, June 23, 2010

OpenJPA OpenBooks sample available for WebSphere Application Server

A JEE version of OpenJPA's OpenBooks sample is now available for WebSphere Application Server with the WebSphere Application Server V7 Feature Pack for OSGi Applications and Java Persistence API 2.0. OpenBooks is a sample application that highlights many of the new features of JPA 2.0. The sample can be built from source obtained from the Apache's OpenJPA svn repository. If you are not familiar with svn, don't let it deter you from getting the sample. Use of svn for basic functions, like checking out a source tree, is a piece of cake. If you are in a single server environment, the OpenBooks build scripts (run with WebSphere's ws_ant) will compile, package, install, and configure OpenBooks. The OpenBooks instructions will help you get going. In particular, take a look at the section Deploy OpenBooks in an Application Server. This section contains some WebSphere-specific instructions.

The build scripts are primarily targeted for a single server environment, but may work in an ND environment as well. By default, OpenBooks is installed to the default server and port and the script assumes admin security is disabled. If you need to target a specific server and/or have security enabled, there are command line variables you can use to specify these details. The script is currently all or nothing, so if you specify one, you must specify all. For example:

$ /opt/WebSphere/AppServer/bin/ws_ant -Dbuild.mode=jee -Dappserver=was -Dwas.home=/opt/WebSphere/AppServer -Dwas.server=localhost -Dwas.port=8880 -Dwas.conntype=SOAP -Dwas.user=myuser -Dwas.password=mypassword

This invocation will install OpenBooks on the local machine with the profile serviced by SOAP admin port 8880 with the specified credentials. The script creates a new Derby data source (which is also configured to create a new database if it doesn't exist) by default, but if you are data source savvy you can easily configure the OpenBooks Data Source and OpenBooks Non-transactional Data Source to point at your own database. Assuming your build and install was successful, point your browser at http://<server>:<port>/OpenBooks to run the sample. Enjoy!!
